CABINET ACCESSORY
 Ultra Enhanced Rackmount Chassis
We make what you need, we deliver what we promised!
webpage updated on N0vember 29, 2010


..........................................................................................................................................................................................................................................................................................

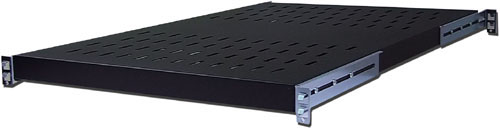

CR001

1U heavy duty component shelf
* 1U
隔板,耐重80 kgs
*
型號CR001B-390mm: 1U黑色隔板可支援機櫃外深之深度約600mm
*
型號CR001B-490mm: 1U黑色隔板可支援機櫃外深之深度約750mm
*
型號CR001B-690mm: 1U黑色隔板可支援機櫃外深之深度約900mm,1000mm,1100mm (工具即可上架,前後卡榫設計)

..........................................................................................................................................................................................................................................................................................

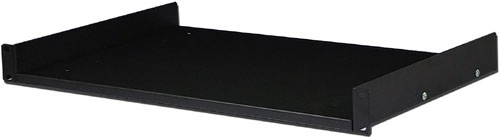

CR002

1U component shelf
* 1U
承板,深度11.81" (300mm),耐重10 kgs
* 可支援壁掛式機箱專用
* CR00
2為白色烤漆,CR002B黑色烤漆
*
包裝: 1 pcs / carton

..........................................................................................................................................................................................................................................................................................

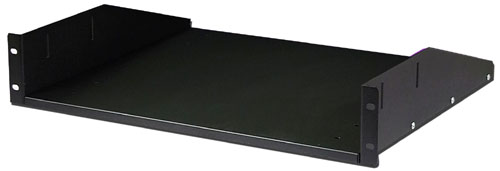

CR003

2U component shelf
* 2U
承板,深度15.35" (390mm),耐重25 kgs
*
適合置放輕重量之電腦配件例modem或印表紙或者重要文件等
* 可支援機櫃外深度: 所有落地式機櫃皆可
*
包裝: 1 pcs / carton

..........................................................................................................................................................................................................................................................................................

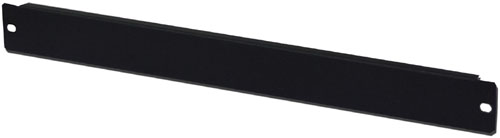

CR004

1U spacer blank
* 1U
機櫃空白擋板
*
鋼材材質
*
可支援所有機櫃

..........................................................................................................................................................................................................................................................................................

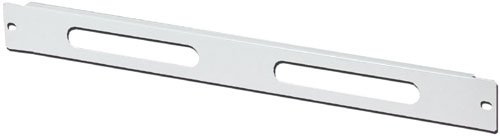

CR005

1U 2 hole brush strip panel
* 1U2
孔跳線面板
鋼材材質
*
可支援所有機櫃

..........................................................................................................................................................................................................................................................................................

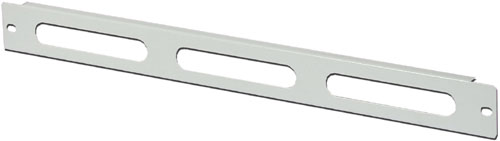

CR006

1U 3 hole brush strip panel
* 1U
3孔跳線面板
鋼材材質
*
可支援所有機櫃

..........................................................................................................................................................................................................................................................................................

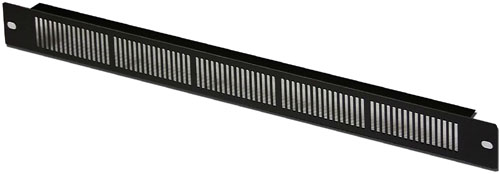

CR007

1U ventilated entry panel
* 1U
散熱風孔機櫃擋板
鋼材材質
*
可支援所有機櫃

..........................................................................................................................................................................................................................................................................................

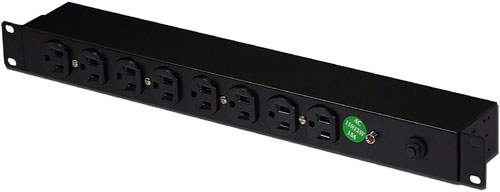

CR009

1U 8 port 110VAC/15A steel power strip
* 1U 8
110VAC@15A插座延長線附接地
* SPCC
板金材質
* 插座形式: NEMA-5-15R (UL
雙平插附一接地圓插座)
* 插頭形式: NEMA 5-15P (UL
雙平插附一接地圓插頭)
*
適用地區為台灣,日本,美國
*
可固定於前方或後方1U空間上架於機櫃
* 備註: 如需求為20A或30A請另外告知

..........................................................................................................................................................................................................................................................................................

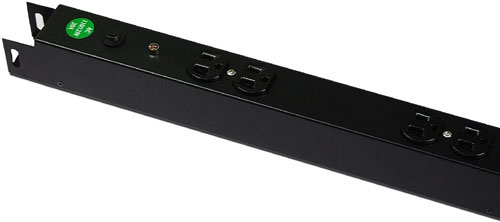

CR010

Aluminum 12 port 110VAC vertical power strip
垂直12110VAC鋁合金材質插座延長線附接地
* 插座形式: NEMA-5-15R (UL
雙平插附一接地圓插座)
* 插頭形式: NEMA 5-15P (UL
雙平插附一接地圓插頭)
*
電源規格: UL 110VAC,適用地區為台灣/日本/美國,若需220VAC或其它國家之電源需求請另行告知
*
可垂直固定於機櫃內,長度1170mm

..........................................................................................................................................................................................................................................................................................

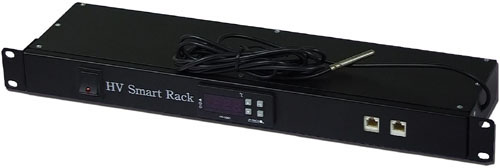

CR011

1U intelligent temperature sensor unit
* 1U
智慧型機櫃溫度控制盒
* SPCC
板金材質
具即時溫控偵測感溫線長3M可偵測機櫃或機房環境溫度

* 第01~03插座具三段輸出/風扇一/風扇二/警告電力輸出第04個插座為需連上軟體方可作用
* 具過溫警告功能內建蜂鳴器及警示燈溫度控制參數均可自設參數值
* 內建
AC 110V power cord線長線長3M
* 電源規格: UL 110VAC,適用地區為台灣/日本/美國,若需220VAC或其它國家之電源需求請另行告知
*
後窗介面圖示

..........................................................................................................................................................................................................................................................................................

CR012

2U spacer blank
* 2U
機櫃擋板
鋼材材質
*
可支援所有機櫃

..........................................................................................................................................................................................................................................................................................

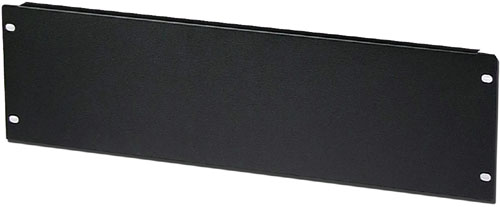

CR013

3U spacer blank
* 3U
機櫃擋板
鋼材材質
*
可支援所有機櫃

..........................................................................................................................................................................................................................................................................................

CR014

4U spacer blank
* 4U
機櫃擋板
鋼材材質
*
可支援所有機櫃

..........................................................................................................................................................................................................................................................................................

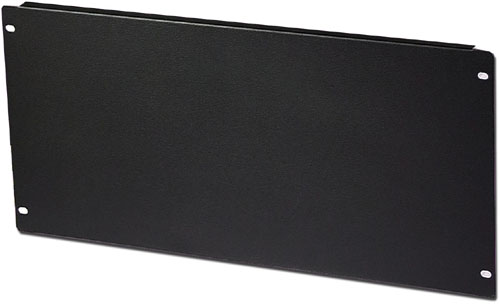

CR015

5U spacer blank
* 5U
機櫃擋板
鋼材材質
*
可支援所有機櫃

..........................................................................................................................................................................................................................................................................................

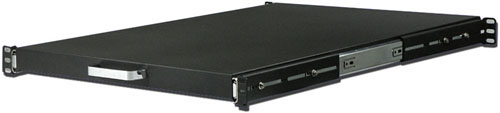

CR016

1U shelf drawer
* 1U
抽拉板,耐重60 kgs,機種深度440/550/740mm
*
型號CR016B-440mm: 1U黑色抽拉板可支援機櫃外深之深度為600mm
*
型號CR016B-550mm: 1U黑色抽拉板可支援機櫃外深之深度為750mm
*
型號CR016B-740mm: 1U黑色抽拉板可支援機櫃外深之深度為900mm

..........................................................................................................................................................................................................................................................................................

CR017

1U English keyboard & touchpad drawer
* 1U
英文鍵盤觸控板抽屜,105 key (88+17),機種深度380mm
* 標準
配備
180cmPS2滑鼠與鍵盤接頭
* 標準配備cable理線折疊架
*
前視及後視圖
* 包裝明細: NW 5.14 KG, GW 6.14 KG, 1.24 CUFT (490 x 440 x 105 mm)

..........................................................................................................................................................................................................................................................................................

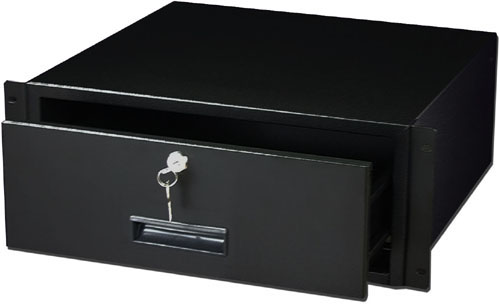

CR018

4U box drawer
* 4U
抽屜,深度412mm
*
可支援所有機櫃

..........................................................................................................................................................................................................................................................................................

CR022

Aluminum 41U cable fixture
* 41U
鋁質
垂直理線槽
*
可支援本公司所生產之41U TM800及SR800加寬型機櫃
*
備註: 若非41U高度者請告知以利裁切

..........................................................................................................................................................................................................................................................................................

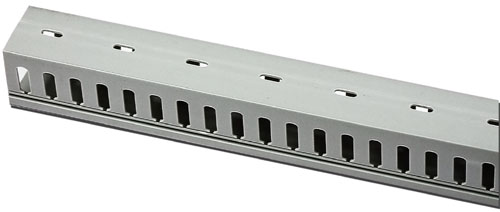

CR023
Plastic 41U cable fixture
* 41U
塑料材質
垂直理線槽(此產品為灰色)
*
適用41U TM系列機
*
備註: 若非41U高度者請告知以利裁切

..........................................................................................................................................................................................................................................................................................

CR026

M5 Cage nuts
* M5
彈片螺母
* 50 pcs / 1

..........................................................................................................................................................................................................................................................................................

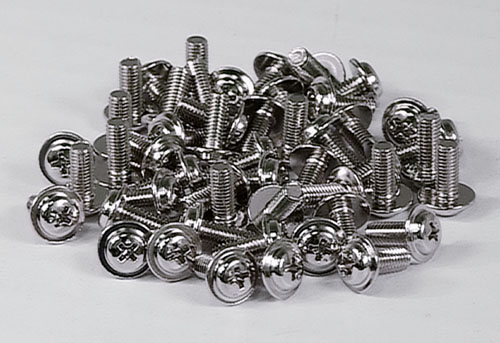

CR027

M5 Torx screw
* M5
面板螺絲
* 50 pcs / 1

..........................................................................................................................................................................................................................................................................................

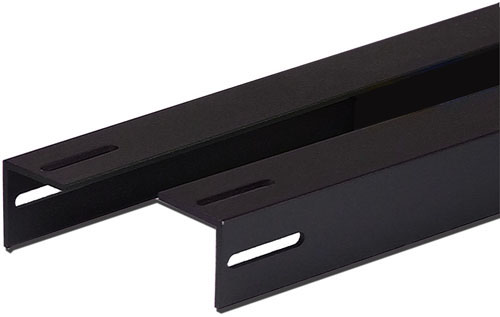

CR036

L angles
鋁合金AL6063T5材質L型支撐架
* 每單位
: 雙
*
型號CR036B-390mm: 1U黑色鋁合金材質L型支撐架可支援機櫃外深之深度為600mm
*
型號CR036B-490mm: 1U黑色鋁合金材質L型支撐架可支援機櫃外深之深度為750mm
*
型號CR036B-690mm: 1U黑色鋁合金材質L型支撐架可支援機櫃外深之深度為900mm

..........................................................................................................................................................................................................................................................................................

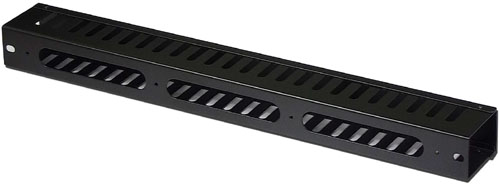

CR041

1U managed cable minder
1U理線槽
* 每單位
: 1pcs
*
可支援所有機櫃

..........................................................................................................................................................................................................................................................................................

CR043

1U 110VAC 6fan module
1U 110VAC 6組120mmx38mm風扇盒深度15.75" (400mm)
*
電源規格: UL 110VAC,適用地區為台灣/日本/美國
*
若需220VAC或其它國家之電源需求請另行告知

..........................................................................................................................................................................................................................................................................................

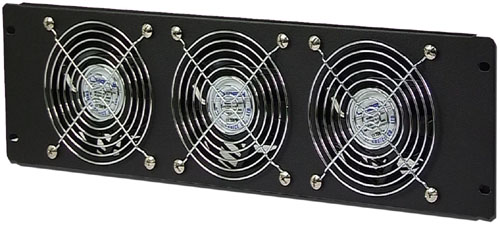

CR046

3U 110VAC 3fan module
* 3U 110VAC 3組120mmx38mm風扇面板
*
電源規格: UL 110VAC,適用地區為台灣/日本/美國
*
若需220VAC或其它國家之電源需求請另行告知
