19吋工業用網路型儀器架
19吋機箱為提供辦公室內部網路連線系統、電腦機房、數據機、交換機及其它通訊、通信設備儀器之使用，符合ANSI/EIA RS-310C之規範所製作，並符合UL及CE之安規認證及MIL-STD-167震動測試之環境測試。為符合國內客戶群的海外市場拓展需求，本公司所制定的規格皆為外銷專用DIY包裝，不論是少量訂購或者裝貨併櫃，小而精巧的材積數，皆能有效控制運輸成本，並能於海內外做機動性的市場銷售。在DIY的組裝步驟上，經由本公司重新的專業設計後，本公司的儀器箱架能夠於30分鐘內組裝完畢。此外我們亦設計了線上DIY組裝示範VCD，能夠讓您於最短的時間內完成所有工作。
MODEL NUMBER	FEATURES
	19吋15U-42U工業用網路型儀器架 * 符合 EIA-RS310C 19吋上架式標準規格 * 通過震動測試MIL-STD-167及MIL-STD-810E * 配合網路連結，預留左右側配線空間，降低維護並提高管理效率 * 上下蓋板為多片組合式，易於擴充變換及拆卸 * 機箱之主鋁柱材質為AL6063T5，可放置定位螺帽或攻牙鐵條 * 前門為鋁質外框搭配壓克力門組，整片附隱藏式把手，拆裝時不須工具即可拆卸 * 後門為整片式鋁框鋁門組，門板上打滿通風孔及裝設隱藏式把手，拆裝時不須工具即可拆卸 * 左右兩邊側板可拆式，不需工具即可拆卸，配合多部機櫃並聯，整齊、美觀，使機房降低維護成本 * 每台機箱附面板螺絲80組及彈片螺母(浮動螺母)80組 * 每台機箱附地平螺絲以固定機箱於地面，以及裝置機動化煞車輪以隨時移動機箱 * 標準配備上抽式靜音風扇二個為一組，符合UL及CE歐規安規 * 活動鐵柱方面可依現場實際需求，任意調整其深度或前後位置 * 孔位符合ANSI/EIA RS-310C之規格，配合彈片螺母(浮動螺母)可調整Server的上下位置 * 整台烤漆處理，標準顏色：IBM白、砂黑色系列 * 接受特殊規格訂製

型號及尺寸 (台灣 / 美國 / 日本常用 )
* 一般使用於4U~8U, 深度580mm以內之工業用電腦環境
* 適合中小企業架設主機用途

型號及尺寸 ( 歐洲常用 )
* 一般使用於1U~3U, 深度660mm以內之工業用電腦環境
* 適合中小企業架設主機，以及網路伺器，ISP, MAIL SERVER等用途

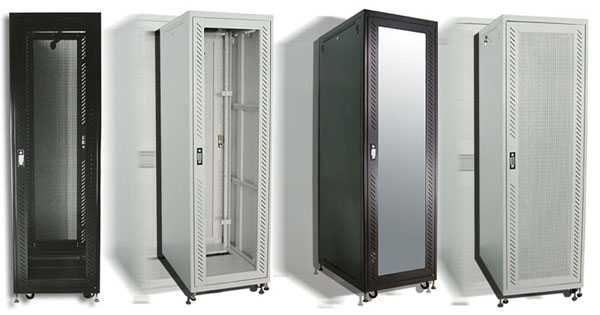

15U~49U FULL RANGE OF 19" RACKMOUNT CABINET
Ultra Enhanced Rackmount Chassis
We make what you need, we deliver what we promised!

- Rackmount standard meets EIA-RS310C regulations
- Main construction (corner, the whole bones) built by aluminum material
- Front Door equipped with acrylic window and key lock (for RACK-xxU-xxxx)

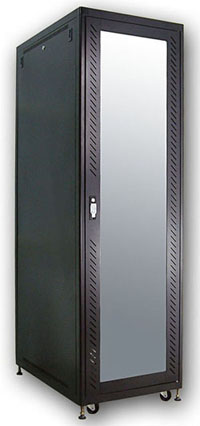

- Front Door equipped with glass window and key lock (for RACK-xxU-xxxxS)
- Good cooling with ventilated panel and key lock at front and rear doors

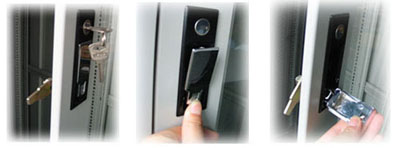

- Easy to disassemble without any tools for front and rear and side doors
- With Front panel screw (CR026) and catch nut (CR027) for 80 pcs as standard parts
- Adjustable Ground-Support Standoff (CR034) and Lockable Wheels (CR040) supported
- Cooling Fans: Two UL & CE approved top exhaust AC cooling fans as standard part
- Adjustable steel vertical locating bars (CR023, CR024) equipped
- The Removable Steel Vertical Rails inside of the cabinet can be adjusted its depth forward or backward
- Catch Nuts can be adjusted its height upper or down according to the position of rackmount chassis
- Export package with heavy-thick durable shipping boxes
- Standard color: Beige or Black powder coating painted
- OEM & ODM are welcome

Model number		Internal height	External height	Max. internal depth for IPC	External depth
15U	RACK-15U-615	667mm (26")	747mm (29")	529mm (21")	615mm (24")
15U	RACK-15U-750	667mm (26")	747mm (29")	664mm (26")	750mm (29")
15U	RACK-15U-900	667mm (26")	747mm (29")	814mm (32")	900mm (35")
30U	RACK-30U-615	1334mm (52")	1414mm (55")	529mm (21")	615mm (24")
30U	RACK-30U-750	1334mm (52")	1414mm (55")	664mm (26")	750mm (29")
30U	RACK-30U-900	1334mm (52")	1414mm (55")	814mm (32")	900mm (35")
35U	RACK-35U-615	1556mm (61")	1636mm (64")	529mm (21")	615mm (24")
35U	RACK-35U-750	1556mm (61")	1636mm (64")	664mm (26")	750mm (29")
35U	RACK-35U-900	1556mm (61")	1636mm (64")	814mm (32")	900mm (35")
41U	RACK-41U-615	1882mm (74")	1902mm (75")	529mm (21")	615mm (24")
41U	RACK-41U-750	1882mm (74")	1902mm (75")	664mm (26")	750mm (29")
41U	RACK-41U-900	1882mm (74")	1902mm (75")	814mm (32")	900mm (35")
41U	RACK-41U-1000	1882mm (74")	1902mm (75")	914mm (36")	1000mm (39")
41U	RACK-41U-1100	1882mm (74")	1902mm (75")	1014mm (40")	1100mm (43")
42U	RACK-42U-600	1927mm (76")	1947mm (77")	514mm (20")	600mm (23")
42U	RACK-42U-800	1927mm (76")	1947mm (77")	714mm (28")	800mm (31")
42U	RACK-42U-900	1927mm (76")	1947mm (77")	814mm (32")	900mm (35")
42U	RACK-42U-1000	1927mm (76")	1947mm (77")	914mm (36")	1000mm (39")
47U	RACK-47U-800	2150mm (85")	2170mm (86")	714mm (28")	800mm (31")
47U	RACK-47U-900	2150mm (85")	2170mm (86")	814mm (32")	900mm (35")
47U	RACK-47U-1000	2150mm (85")	2170mm (86")	914mm (36")	1000mm (39")
49U	RACK-49U-800	2239mm (88")	2259mm (89")	714mm (28")	800mm (31")
49U	RACK-49U-900	2239mm (88")	2259mm (89")	814mm (32")	900mm (35")
49U	RACK-49U-1000	2239mm (88")	2259mm (89")	914mm (36")	1000mm (39")
41U	RACK-41U-900S	1882mm (74")	1902mm (75")	814mm (32")	900mm (35")
41U	RACK-41U-1100S	1882mm (74")	1902mm (75")	1014mm (40")	1100mm (43")
42U	RACK-42U-900S	1882mm (74")	1947mm (76")	814mm (32")	900mm (35")

15U~49U FULL RANGE OF 19" OPEN FRAME RACK
Ultra Enhanced Rackmount Chassis
We make what you need, we deliver what we promised!

- Rackmount standard meets EIA-RS310C regulations
- Main construction (corner, the whole bones) built by aluminum material
- With Front panel screw (CR026) and catch nut (CR027) for 80 pcs as standard parts
- Adjustable Ground-Support Standoff (CR034) and Lockable Wheels (CR040) supported
- Cooling Fans: Two UL & CE approved top exhaust AC cooling fans as standard part
- Adjustable steel vertical locating bars (CR023, CR024) equipped
- The Removable Steel Vertical Rails inside of the cabinet can be adjusted its depth forward or backward
- Catch Nuts can be adjusted its height upper or down according to the position of rackmount chassis
- Export package with heavy-thick durable shipping boxes
- Standard color: Beige or Black powder coating painted
- OEM & ODM are welcome

Model number		Internal height	External height	Max. internal depth for IPC	External depth
15U	RACK-15U-615F	667mm (26")	747mm (29")	529mm (21")	615mm (24")
15U	RACK-15U-750F	667mm (26")	747mm (29")	664mm (26")	750mm (29")
15U	RACK-15U-900F	667mm (26")	747mm (29")	814mm (32")	900mm (35")
30U	RACK-30U-615F	1334mm (52")	1414mm (55")	529mm (21")	615mm (24")
30U	RACK-30U-750F	1334mm (52")	1414mm (55")	664mm (26")	750mm (29")
30U	RACK-30U-900F	1334mm (52")	1414mm (55")	814mm (32")	900mm (35")
35U	RACK-35U-615F	1556mm (61")	1636mm (64")	529mm (21")	615mm (24")
35U	RACK-35U-750F	1556mm (61")	1636mm (64")	664mm (26")	750mm (29")
35U	RACK-35U-900F	1556mm (61")	1636mm (64")	814mm (32")	900mm (35")
41U	RACK-41U-615F	1882mm (74")	1902mm (75")	529mm (21")	615mm (24")
41U	RACK-41U-750F	1882mm (74")	1902mm (75")	664mm (26")	750mm (29")
41U	RACK-41U-900F	1882mm (74")	1902mm (75")	814mm (32")	900mm (35")
41U	RACK-41U-1000F	1882mm (74")	1902mm (75")	914mm (36")	1000mm (39")
41U	RACK-41U-1100F	1882mm (74")	1902mm (75")	1014mm (40")	1100mm (43")
42U	RACK-42U-600F	1927mm (76")	1947mm (77")	514mm (20")	600mm (23")
42U	RACK-42U-800F	1927mm (76")	1947mm (77")	714mm (28")	800mm (31")
42U	RACK-42U-900F	1927mm (76")	1947mm (77")	814mm (32")	900mm (35")
42U	RACK-42U-1000F	1927mm (76")	1947mm (77")	914mm (36")	1000mm (39")
47U	RACK-47U-800F	2150mm (85")	2170mm (86")	714mm (28")	800mm (31")
47U	RACK-47U-900F	2150mm (85")	2170mm (86")	814mm (32")	900mm (35")
47U	RACK-47U-1000F	2150mm (85")	2170mm (86")	914mm (36")	1000mm (39")
49U	RACK-49U-800F	2239mm (88")	2259mm (89")	714mm (28")	800mm (31")
49U	RACK-49U-900F	2239mm (88")	2259mm (89")	814mm (32")	900mm (35")
49U	RACK-49U-1000F	2239mm (88")	2259mm (89")	914mm (36")	1000mm (39")

型號：RACK-41U-750T
外高	內高	外寬	內寬	外深	內深
1902 mm	41U	600 mm	19 inches	750 mm	664 mm
型號：RACK-35U-750T
外高	內高	外寬	內寬	外深	內深
1636 mm	35U	600 mm	19 inches	750 mm	664 mm
型號：RACK-30U-750T
外高	內高	外寬	內寬	外深	內深
1414 mm	30U	600 mm	19 inches	750 mm	664 mm
型號：RACK-15U-750T
外高	內高	外寬	內寬	外深	內深
747 mm	15U	600 mm	19 inches	750 mm	814 mm

型號：RACK-41U-900
外高	內高	外寬	內寬	外深	內深
1902 mm	41U	630 mm	19 inches	900 mm	814 mm
型號：RACK-35U-900
外高	內高	外寬	內寬	外深	內深
1636 mm	35U	630 mm	19 inches	900 mm	814 mm
型號：RACK-30U-900
外高	內高	外寬	內寬	外深	內深
1414 mm	30U	630 mm	19 inches	900 mm	814 mm
型號：RACK-15U-900
外高	內高	外寬	內寬	外深	內深
747 mm	15U	630 mm	19 inches	900 mm	814 mm
