GHI-8940 8U RACK MOUNT (40+4+3 x 3.5" HOTSWAP)

　

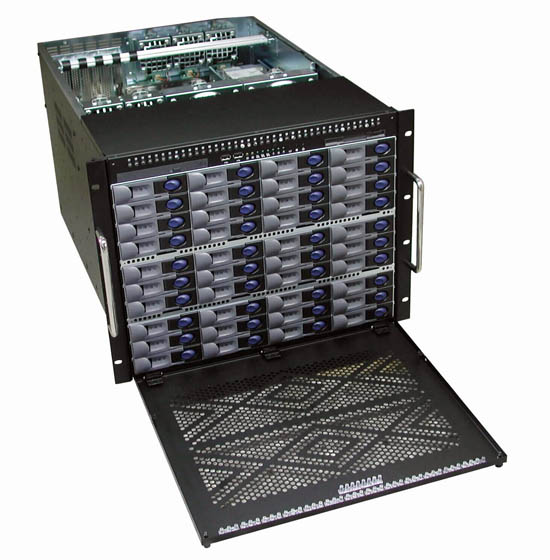

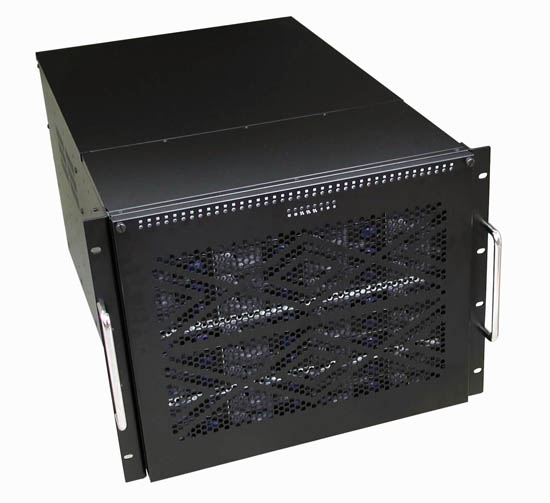

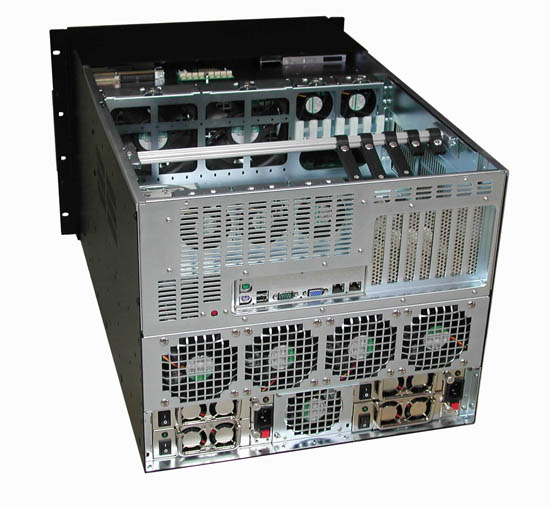

照片  照片  照片  機構圖(pdf)

EIA RS-310C 19" Rackmount Standard

Construction:

Heavy Duty Cold Rolled Electroplated Steel

Color:

Black (Standard) or Custom

System Boards:

C2D, Xeon, AMD 64, Opteron, Phenom

Motherboard Size:

Support EATX M/B (Max. to 16 " x 13") with Removeable drawer

Drive Bays:

1x slim ODD, 1x slim FDD, 40 x hotswap 3.5" HDD carrier/tray

Drive Interface:

SATA-II, SAS, U320 SCSI, SATA-Multilane(SFF-8470), Mini-SAS(SFF-8087)

Power Supply:

(Rear Chassis Installation) 1U Redundant ATX Power Supply(1950W+700W); Max Depth 300mm

Cooling Units:

5x 120mm, 2x 40mm, 4x 60mm, 4x 90mm Heavy Duty Ball Bearing Fans

Thermal Managment Card:

Installed (GHA-CO04)

Expansion Slot:

7 x Vertical Full Length/Height PCI Slots
Connector Port (front): 2x USB

Indicators:

LEDs for Power, 40x HDD Activity, 3x LAN, Fan Failure, Temperature Warning

Buttons:

Power On/Off, System Reset, Fan Failure Reset, Alarm Reset Buttons

Front Door(s):

Single Door with 2x Thumbscrew

Dimensions:

(W x H x D):

483 x 354 x 666mm (19" x 13.9" x 26.2")

Weight:

40.9 kgs / 90.2 lbs

Cu. ft.:

  9.1

Carton Size:

  61.5 x 49.4 x 85cm (26.2" x 19.5" x 33.5")

Humidity:

5% - 95% Non-condensing

Product Applications:

NAS, SAN, File Server

Optional Accessories:

Slide Rails:

  • General Device RL-CC1001-99-0104
Chassis Height: 8U
Dimensions: 19(w) x 13.9(h) x 26.2(d) - inches
482.6(w) x 353.06(h) x 665.48(d) - mm
Drivebays: 1x Slim ODD + 1x Slim FDD + 40+4+3x swappable 3.5
Powersupply: 1U Redundant ATX Power Supply (1950W+700W)

Specifications

• EIA RS-310C 19" Rackmount Standard
• Construction: Heavy Duty Cold Rolled Electroplated Steel
• Color: Black (Standard), Beige or Custom
• System Boards: Pentium 4, Dual Xeon, Athlon 64, Dual Opteron
• Support EATX M/B (Max. to 13" x 16") SSI EEB 3.0
• Drive Capacity: (GHI-891-1): 1x Slim CD-ROM & 1x Slim
    FDD & 40x 3.5" Swappable Trays
• Drive Capacity: (GHI-891-2): 1x Slim CD-ROM & 1x Slim FDD
    & 40x 3.5" Swappable Trays & 1x5.25"CD-ROM & 2x 3.5"HDD
• Drive Capacity: (GHI-891-3): 1x Slim CD-ROM & 1x Slim
    FDD & 44x 3.5" Swappable Trays
• Drive Interface: SATA, SCSI320 , Multilane SATA or SAS
• Power Supply(Optional): 2U Single up to 700W or 2U
    Redundant up to 600W or N+1 up to 950W or 1U Redundant
    up to 1650W ATX P/S (Rear Installation) Max. Depth 300mm
• Cooling: (GHI-891-1): 5x(60mm = 23.5CFM ea.) & 1x (80mm = 42.5CFM
    ea.) & 4x (90mm = 51.0CFM ea.) & 5x (120mm = 90.0CFM ea.) Fan
• Cooling: (GHI-891-2): 5x(60mm = 23.5CFM ea.) & 4x (80mm = 42.5CFM
    ea.) & 2x (90mm = 51.0CFM ea.) & 5x (120mm = 90.0CFM ea.) Fan
• Cooling: (GHI-891-3):8x (40mm = 7.0CFM ea.) & 5x(60mm = 23.5CFM
    ea.) & 1x (80mm = 42.5CFM ea.) & 5x (120mm = 90.0CFM ea.) Fan
• Front Door: Single Door With 2 Thumbscrews (Removable)
• Connector Port (Front): 2x USB Ports
• Thermal Management Card: GHA-CO04
• Indicators: LEDs for Power ON/OFF , HDD Activity, Fan,
    Temperature, LAN
• Flexible Hold Down Bar Designed
• Switch: Power ON/OFF Momentary (Pushbutton), System
    Reset, Buzzer Reset
• Dimensions (W x H x D): 483 x 354 x 666mm (19" x 13.9" x 26.2")
• Cuft: 9.1
• GW: 40.9 kgs / 90.2 lbs
• Carton Size(cm): 85 x 49.4 x 61.5 (33.5" x 19.5" x 26.2")
• Humidity: 5% - 95% Non-condensing

最多支援44組熱拔插硬碟空間(40組前面版/4組背面/另可安裝3組內接式/共計47組)
POWER可依客戶須求更改機構/共有三種機構組裝可選擇
本產品採客訂式,當您下單確認後排產約21個工作天
售價NT$49000未稅
